Product: Mold
OriginHuizhou, Guangdong
Whether To ImportNo
Size12
Frequency50
Effective Image Size30
Ambient Temperature20~50
Power SupplyDC12
Resolution1280*800
BrandVision Technology
Power Consumption40
TypeIndustrial monitor
ModelCSICA-AIO-Cx
ColorBlack and white monitor
( Cross Border Trading)No
Accessory TypeRadio baby monitor
Application background
In the production industry and metal die -casting industry in automotive manufacturing, medical equipment, electronic products, general plastic parts, and metal die -casting industries. As the most important molding equipment in injection molding processing, molds account for a large proportion of production costs.The quality of the finished product, and its service life directly affects product costs.In actual production, due to the frequent replacement of the mold, the expensive molds in each production cycle may be damaged due to problems such as product residues or slider dislocation.

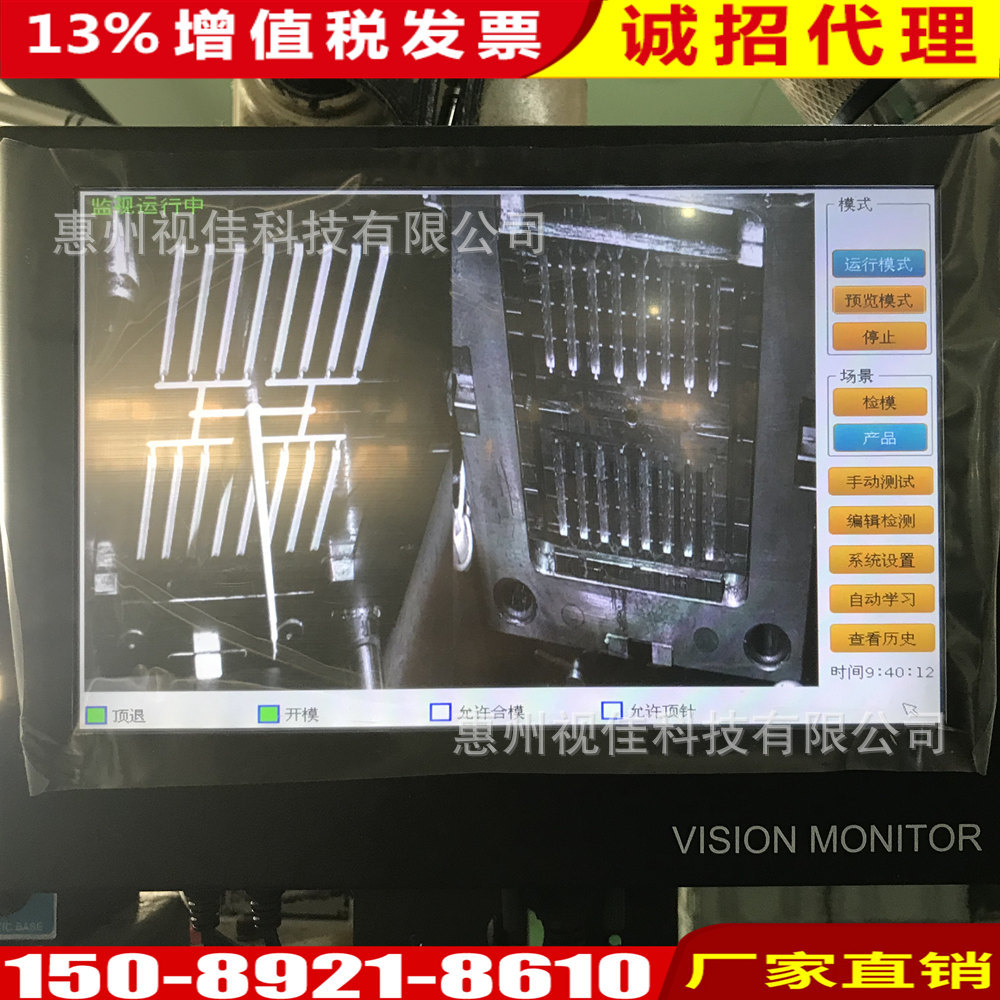

The mold monitor developed by the company can monitor the mold in real time for people's eyes. During the production process, it can accurately detect various abnormal conditions on the mold and prevent the molds., Reduce production costs, improve product quality, and ensure the delivery cycle of enterprise products.
Product Features
1. Model, mold, and product residue confirmation before the mold
2. Plug -in detection in the molding
3. After the top is out, the product will fall into a bad detection
4. Position of slider and return to the return position confirmation
5. External program insertion error confirmation
6. Like less, break confirmation
7. Detecting whether the product is missing or the edges are generated
8. Check whether multiple acupoint products are missing
9. Check whether the multi -color products are mixed with color correct
10. Prevent remnants from appearing continuously
Technical advantages

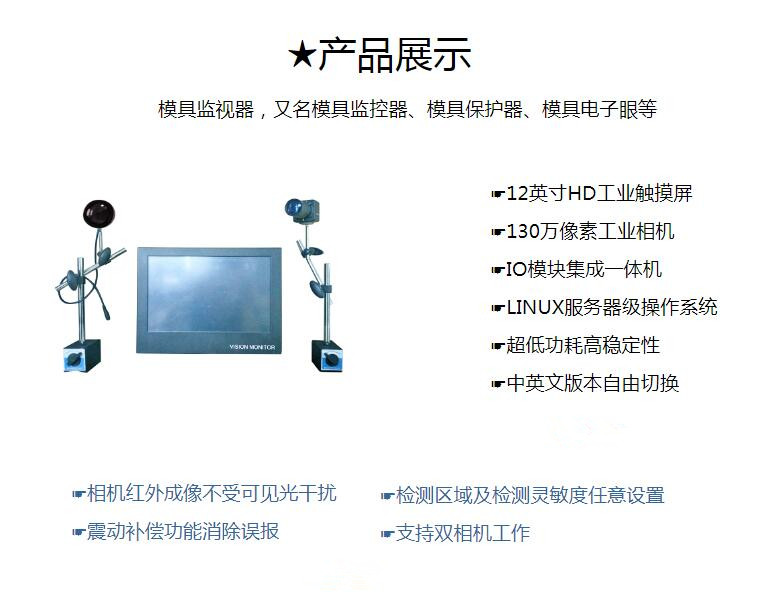

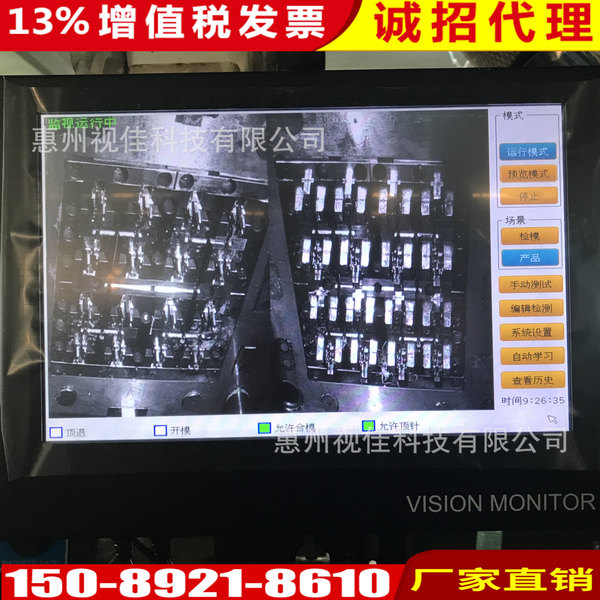

- System hardware: Based on advanced embedded technology, the collection, processing and IO control are integrated into integrated hosts. The installation wiring is simple and does not take up space. The large touch screen is easy to operate and is convenient for replacement to different machines.
- system software: Based on the embedded development of the industrial -grade Linux server, the gray algorithm and geometric feature algorithm independently developed are accurate and reliable. It can not be restarted for many years, and the data is not lost without loss of electricity.
- Detection method: Non -contact testing, no interference to production.
- Way of imaging: Infrared imaging, not disturbed by visible light.
- Detection speed: The fastest camera can reach 0.1S as soon as possible.
- Detection accuracy: The maximum accuracy can reach 0.1mm.
- Detection area: You can set any shape and any amount, and the sensitivity can be flexibly adjusted. You can set up as many as 5 different levels of sensitivity.
- Vibration compensation: Avoid misunderstandings caused by the micro vibration of the mold during the production process.
- Position tracking: The position opening position is not allowed to track its position for detection.
- history record: Automatic records of abnormal results, facilitating quality tracking.
- Permission control: You can turn on the password function for important operations to avoid unrelated personnel.
- Operating procedures: Special designed for front -line production employees, easy to get started, learn 2 minutes.

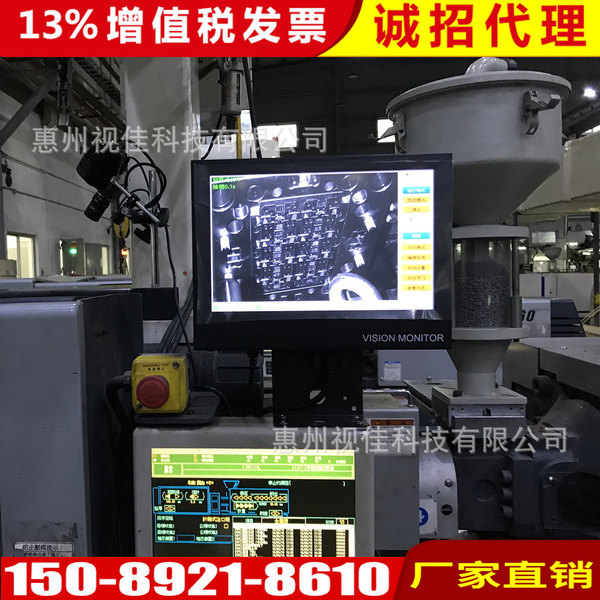

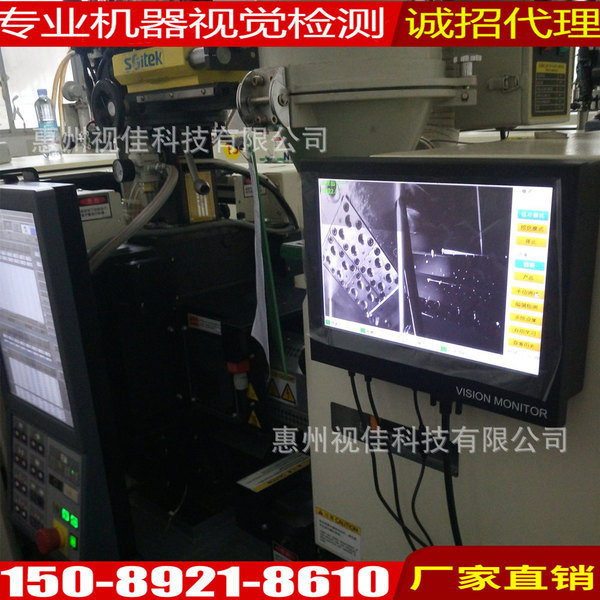

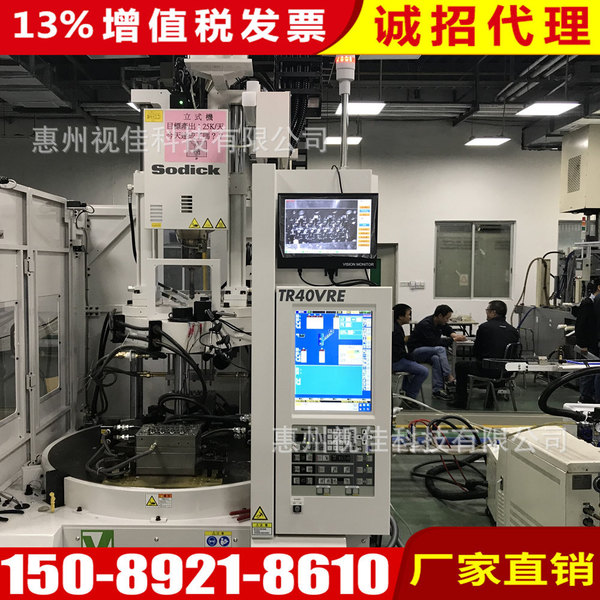

- Application scope: Syndrome, vertical machine, motor, oil compressor and other injection molding machines and die casting machines are available.
