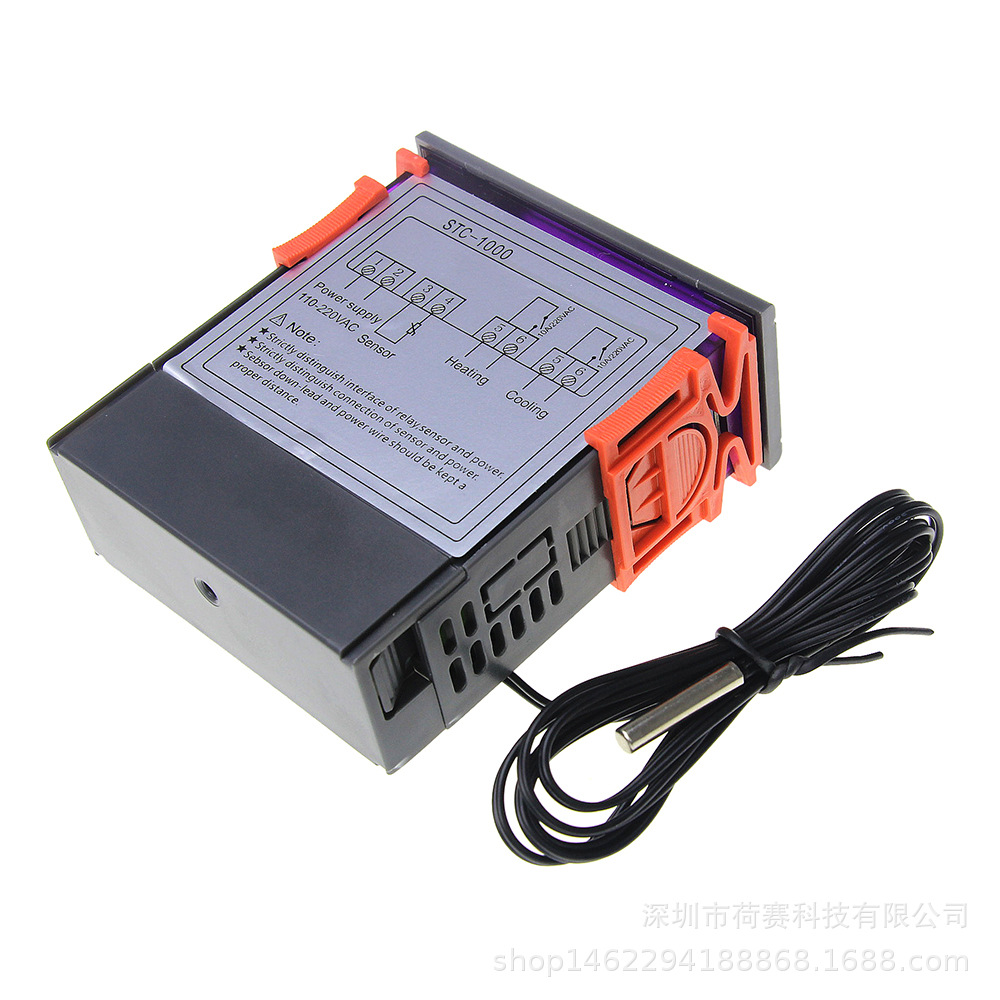

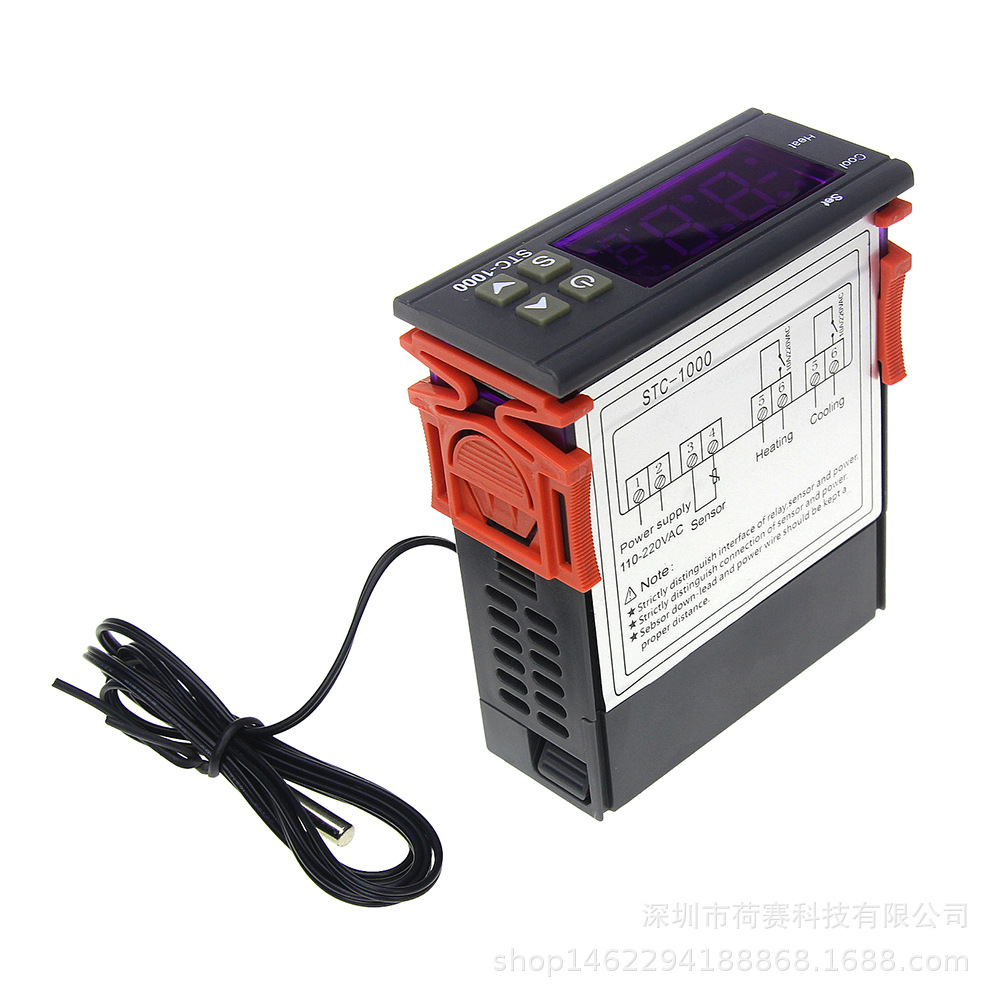

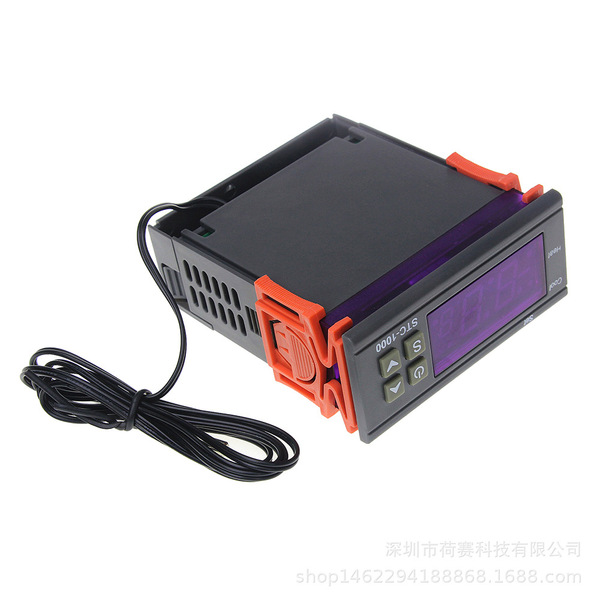

Thermostat

• Power: 110-220Vac±10%, 50 / 60Hz (or DC12V / DC24V)
  ● The temperature range of measurement and control: -50 ℃ ～+110 ℃
  ● Resolution: 0.1
  ● Accuracy:±1℃
  ● Relay output contact capacity: Heating: 10A/240VAC, Refrigeration: 10A/240VCA
  ● Sensor H type: imported NTC sensor, 1 meter long line
  ● Shell material: gray ABS flame retardant plastic shell

  ● Net weight 120g hair weight 140g Press SET for 5 seconds to enter the internal parameter settings, switch p0 up and down ... P8 according to RST confirmation and return





  Code	Code description	Scope	Factory setting
  P0	Refrigeration mode/heating mode	C/H	C
  P1	Back settings	0.1-30	2
  P2	Maximum setting range	120	120
  P3	Minimum setting range	-55	-55
  P4	Temperature correction	-10.0 ~+10.0 degrees	0
  P5	Delay starting time	0-10 minutes	0
  P6	High temperature alarm	-50~110	off
  P7	Data lock switch	on/off	off
  P8	reset	on/off	off



  P0 cooling, heating mode

  The high temperature start is the refrigeration mode, please set it to C

  The low temperature start is the heating mode, please set it to H

  P1 back settings

  Under the heating mode (h): measurement value≤Set value -Start output heating to the set value to stop when the difference is returned

  Refrigeration mode (C): Measurement value≥Setting value + Back discharge Start output refrigeration to the set value stop

  P2 maximum setting range: set the highest value when setting temperature does not exceed this value

  P3 minimum setting range: The lowest value when setting temperature is not lower than this value

  P4 temperature school correction

  When the measurement temperature and standard temperature are deviated, you can use this function correction, the temperature after correction = the temperature before correction+correction

  P5 delay startup time unit: minute

  When the compressor equipment is refrigerated, the delay time can be set according to the need. When the controller outputs the device will not start immediately, it needs to be started after the setting is completed

  P6 high temperature alarm

  When the measurement value is greater than this value screen display --- and tick sound to the police, and forcibly disconnect the output

  P7 data lock function

  To turn on the data lock, you can keep the current settings from being changed. At this time, the setting temperature and function are invalid. If you need to modify it, you need to turn off the data lock function

  P8 restore factory settings

  Press Set Set to P8, press SET once to ON, and restore the factory settings according to RST

  You can also hold down the + -key without letting go of the self -inspection and restoration of the factory setting

  Fourth, use instructions

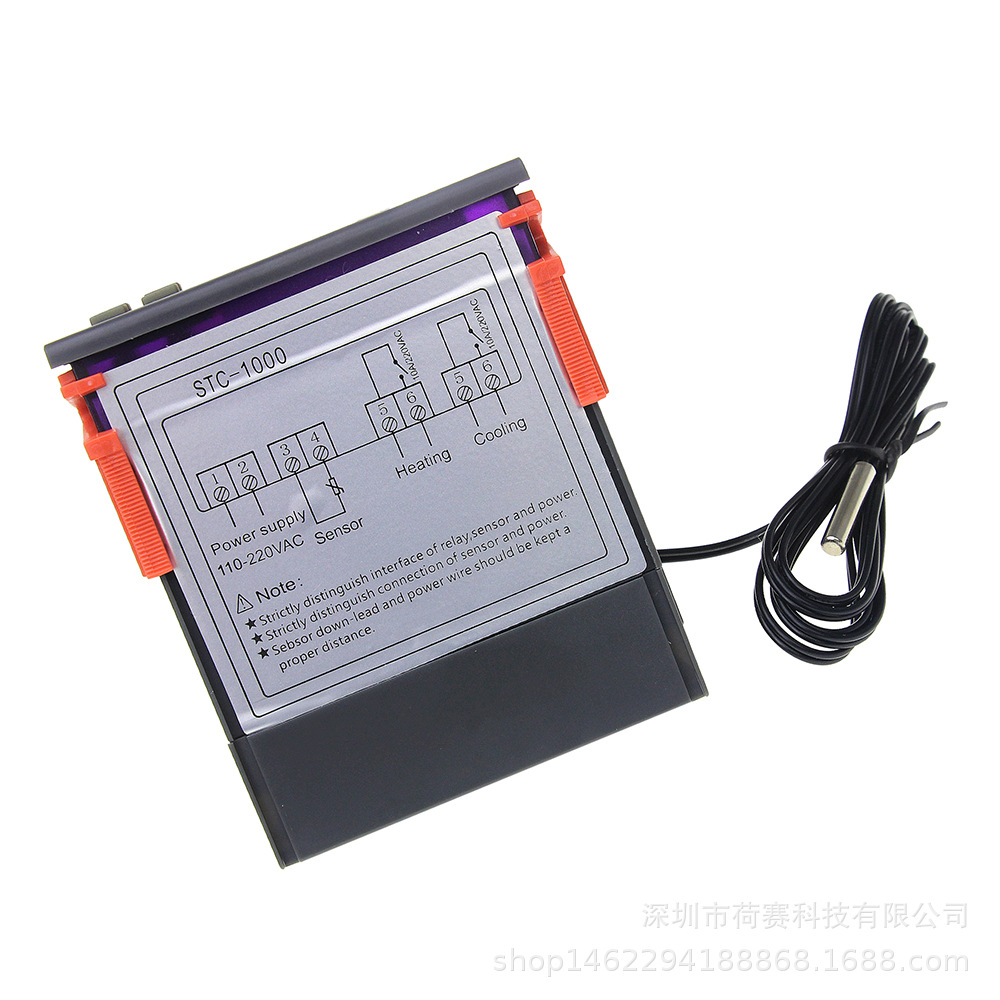

  Please connect the power supply according to the parameter and the line diagram, and connect the refrigeration or heating equipment on the output end

  Enter the internal settings to select heating (enter P0 to select H) or refrigerate (enter P0 to select C) mode

  Set the temperature method: press the set screen to flash, press the required temperature to set up and down, press RST confirmation and return

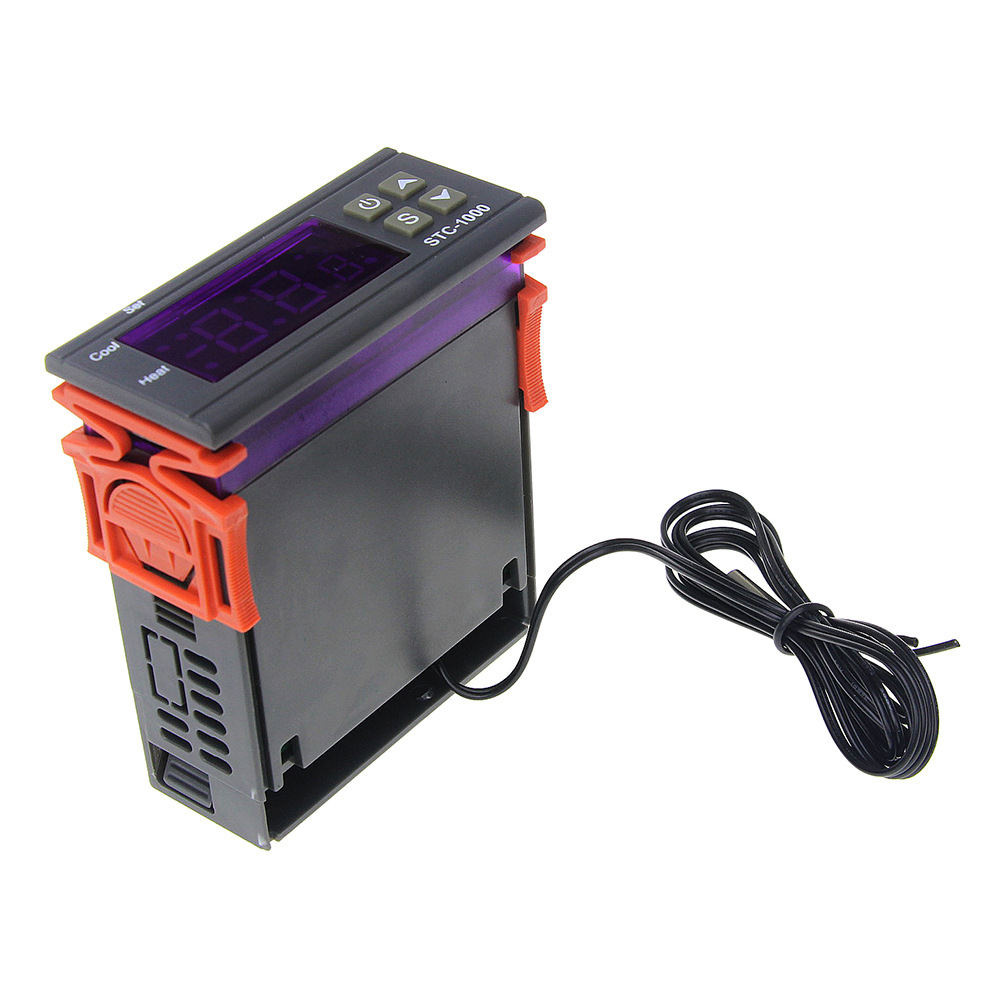

  OUT indicator light of the panel: Flash represents cooling or heating start delay, Chang Liang means output

  Digital tube: Display LLL is a sensor open; show that HHH is the temperature controller beyond the measurement range;
