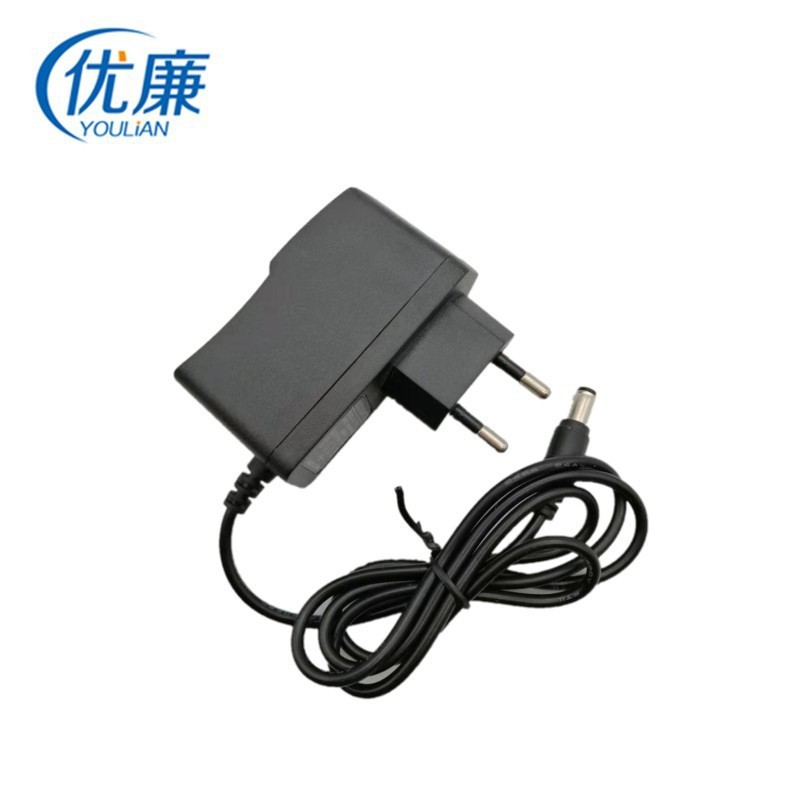

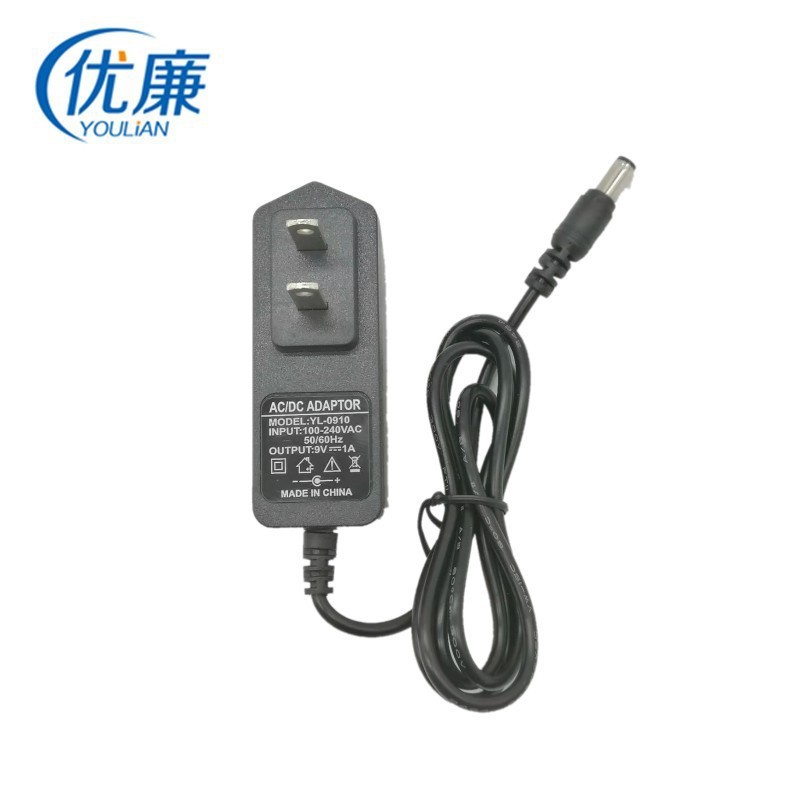

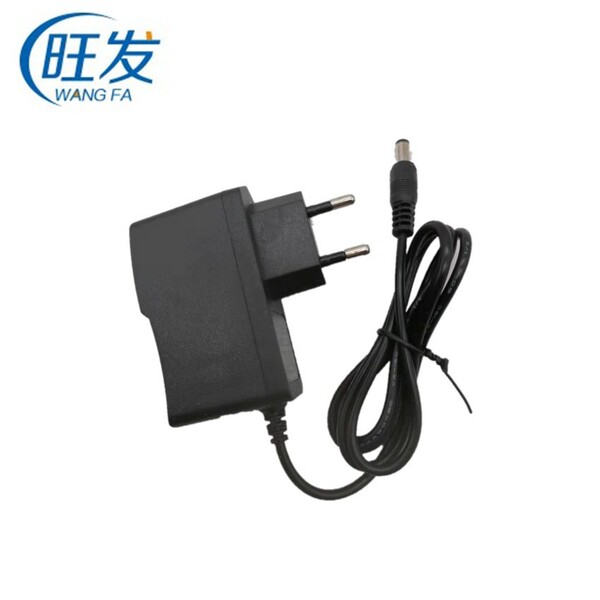

Power adapters

Please note; this power supply is a power adapter, without light default.Please contact Wangwang with a light.Please contact Wangwang if you need a lithium battery charger

Technical Parameters:
Input voltage: AC (AC) 100V-240V 50-60Hz

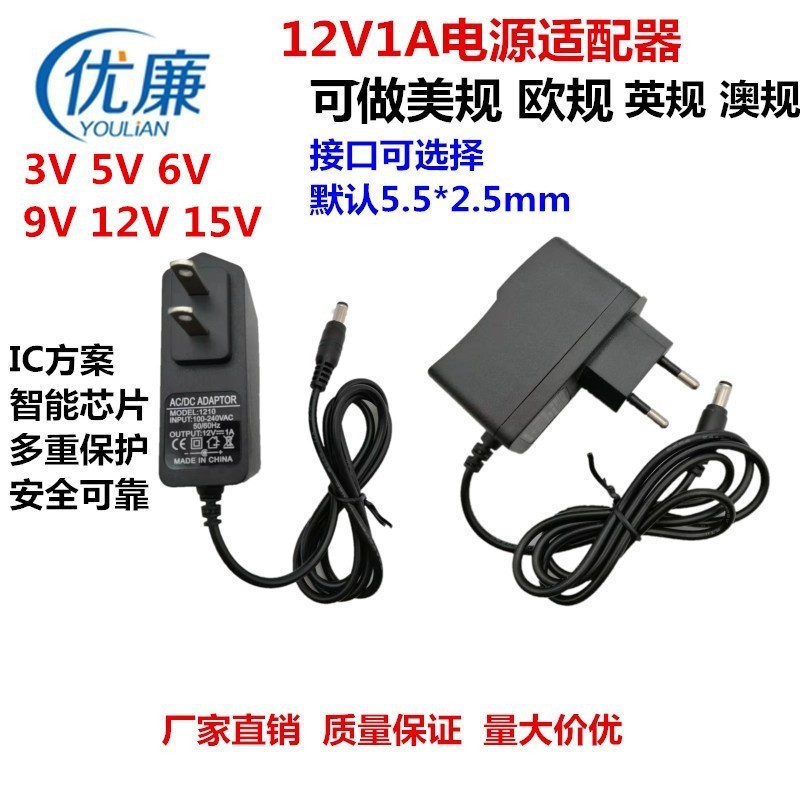

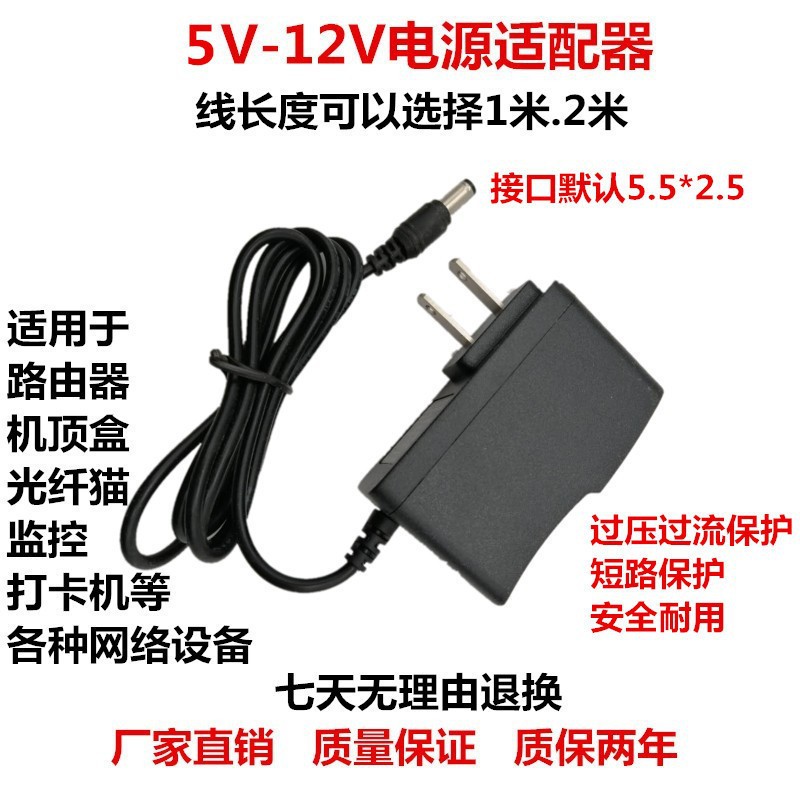

Output voltage: DC (DC 3V 5V 6V 9V 12V 15V
Rating output current: 1A  1.5A  2A
Modulation method: pulse width modulation
Work efficiency: 85%
Temperature Coefficient:±0.02%℃
Start Time<1S (AC 220V input IO = 10%)
Output ripple&Noise: 100MVP-P
Output voltage accuracy: 95%
Voltage adjustment rate: 5%
Load regulation: 4%
Product scheme: IC solution
Protection function: Overload protection 105%~150% of rated power
Automatically restores overvoltage protection from 115% to 135% of the nominal voltage
Insulation strength: input-output AC 2000V/10 seconds
Insulation resistance: input-output>50MΩ, DC 500V
Environment: Working temperature 0～45℃, 20%～90%RH
Storage temperature -20℃～85℃ 10%～95%RH
Structure: cooling form natural cooling
Wide input voltage range
Cost -effective
Input overvoltage, overload protection
Output continuous short circuit guaranteed

Output DC cable (also with magnetic rings, anti -interference): usually 1 meter (length can be customized)

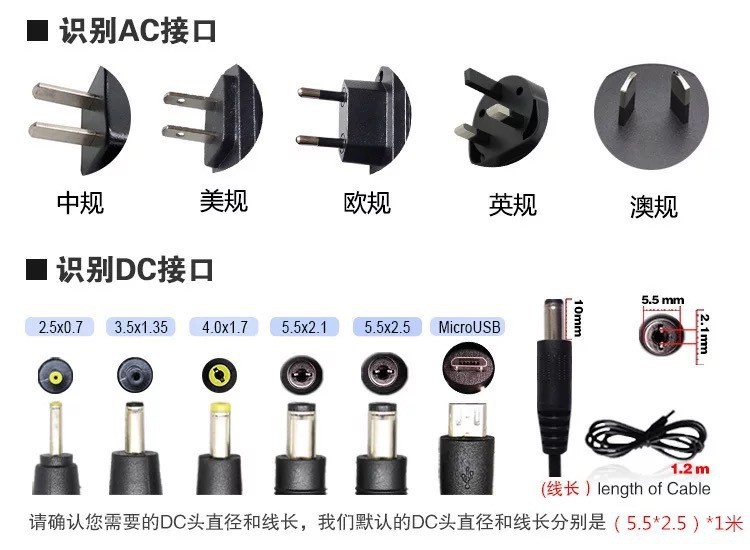

Output DC interface: 5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm2.5*0.7mm, etc.

Product features:
1.The EMC circuit effectively eliminates the interference with peripheral devices and has its own anti -interference performance, with high reliability performance.
2.DC ripples are small, and work efficiency is high.
3.The working temperature is low and the service life is long.
4.The input voltage range is wide, which meets the global standards.
5.Good insulation performance, high anti -electricity strength.
6.It has short -circuit, over -current, overload, overload protection functions.
7. Output short -circuit protection.
8. Excessive protection.
9. Work temperature 0 ℃ ~+50 ℃.
10. Storage temperature -20 ℃ ~+85 ℃
11. Power polarity: internal and external negative, (special polarity can be ordered as needed)

This product is available in: American, European, British and Australian connector sizes can be customized!
The company's products are widely used in security equipment, liquid crystal displays, LED lamps, communication equipment, audiovisual products, digital products, radios, telephone, CDs, VCDs, re -reading machines, computers, electronic piano, game machines, small TVs, medical careHealth equipment, computers, electronic instruments and other products.
The company's products are exported in various fields at home and abroad, such as Taiwan lighting, US electromechanical equipment, advertising lights, LED lights, South Korean security equipment, etc.
Provide OEM and accept customer-customized power supplies with different parameters and specifications.Welcome to discuss cooperation!!!Contact number 15382900760
