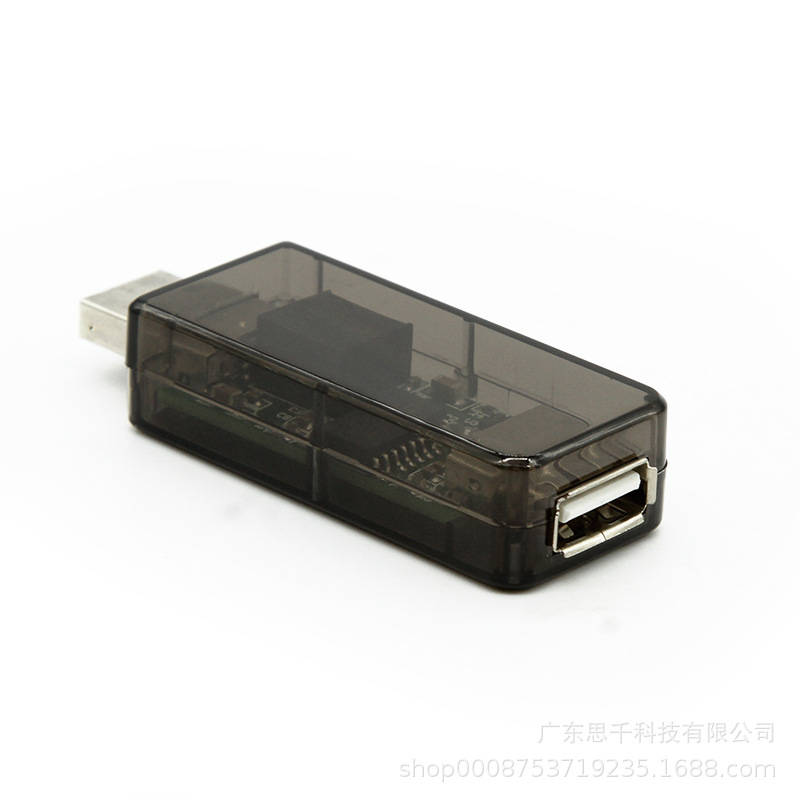

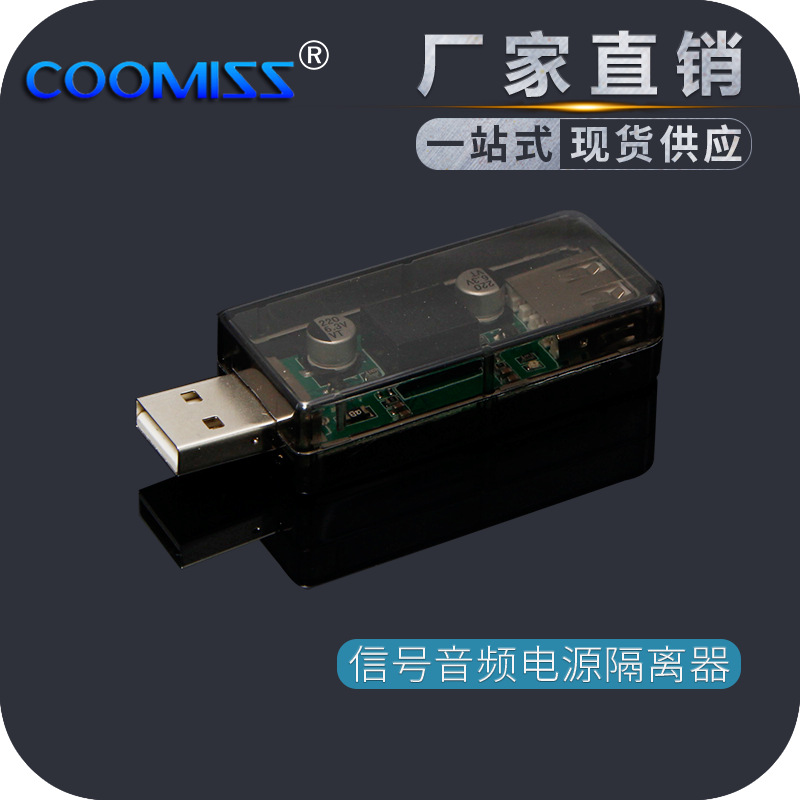

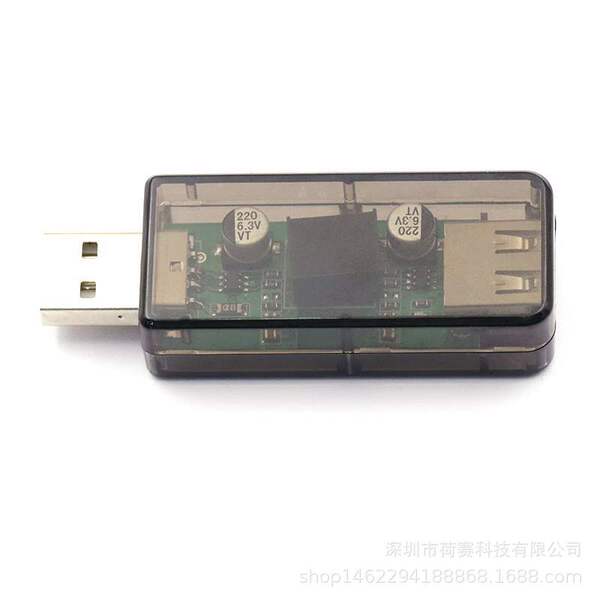

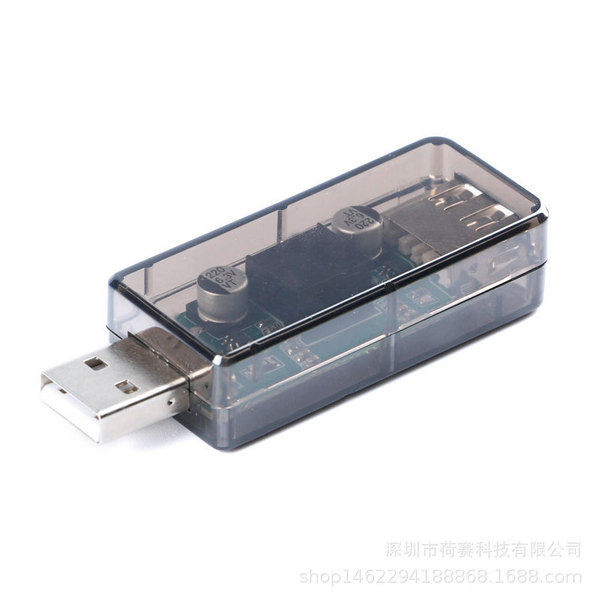

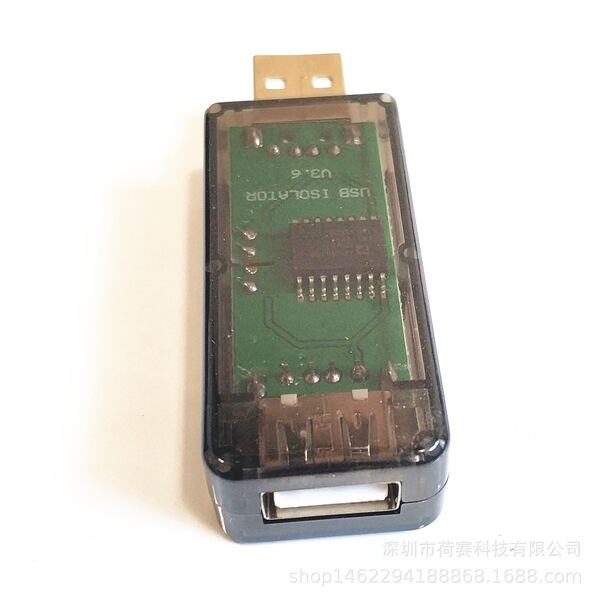

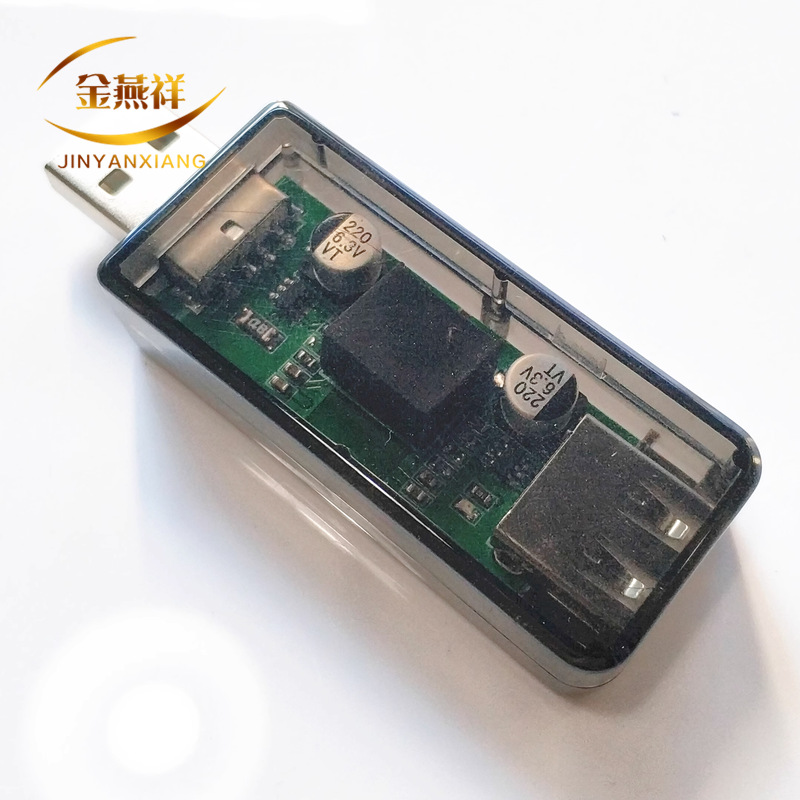

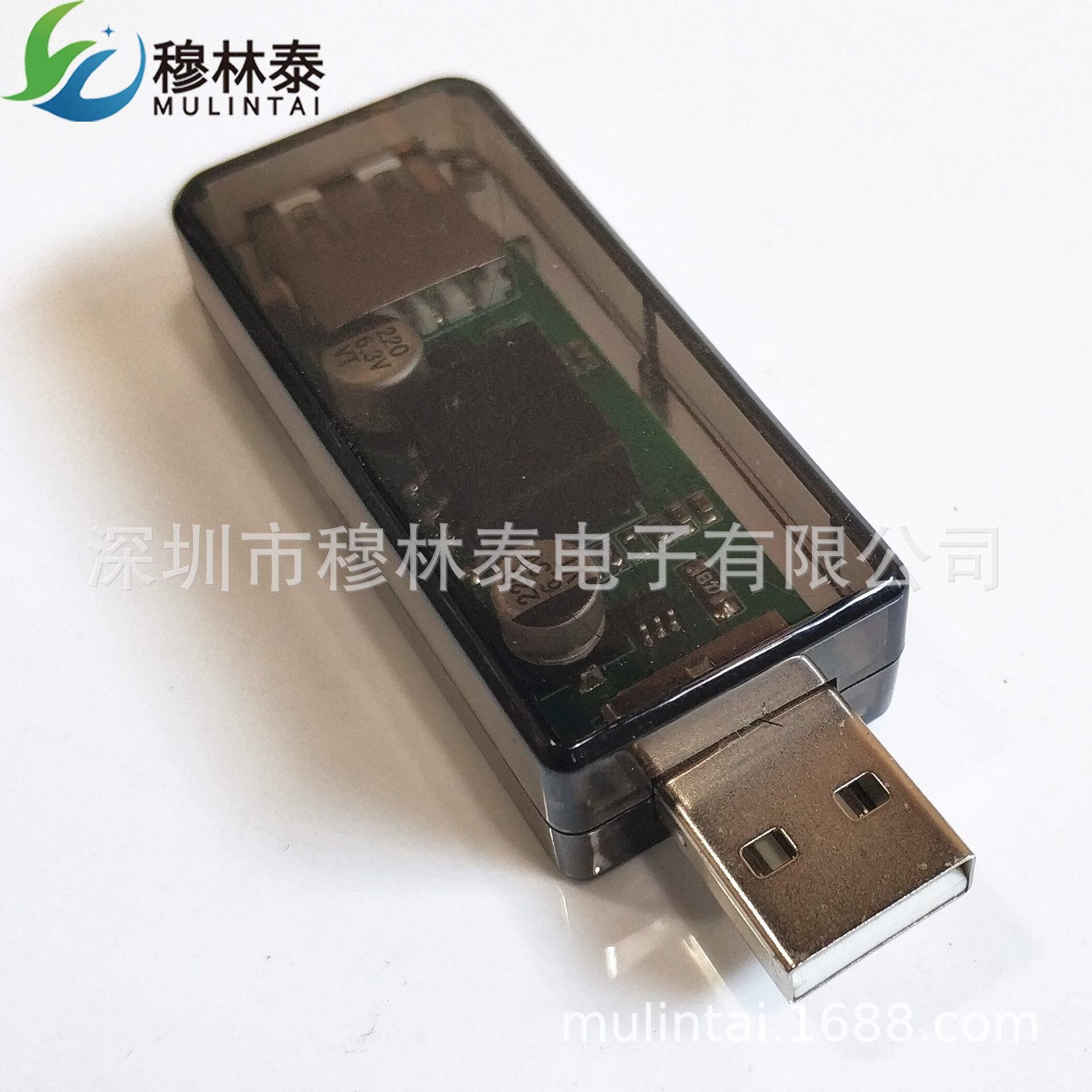

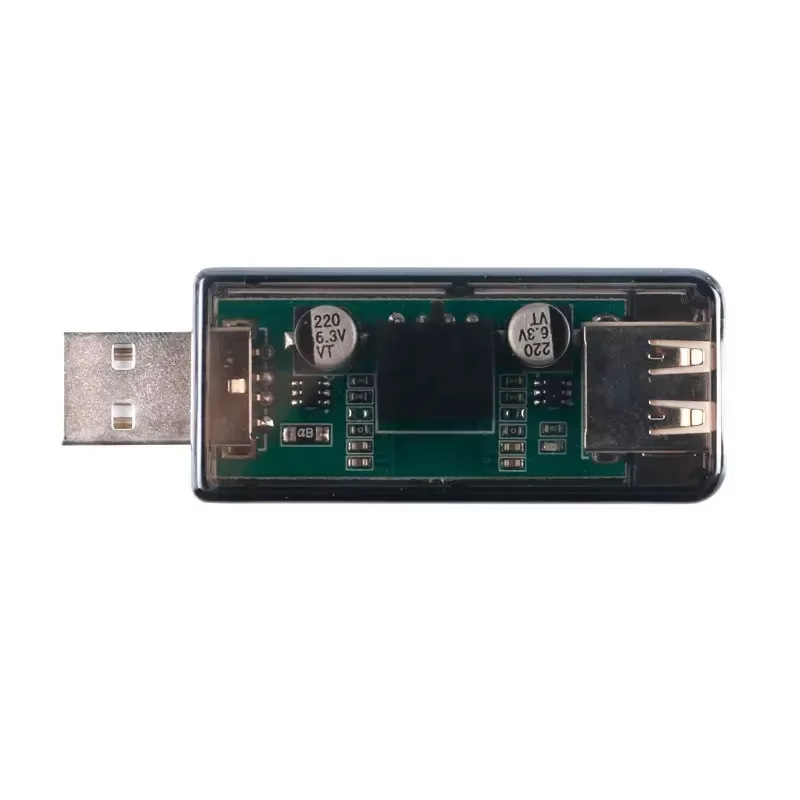

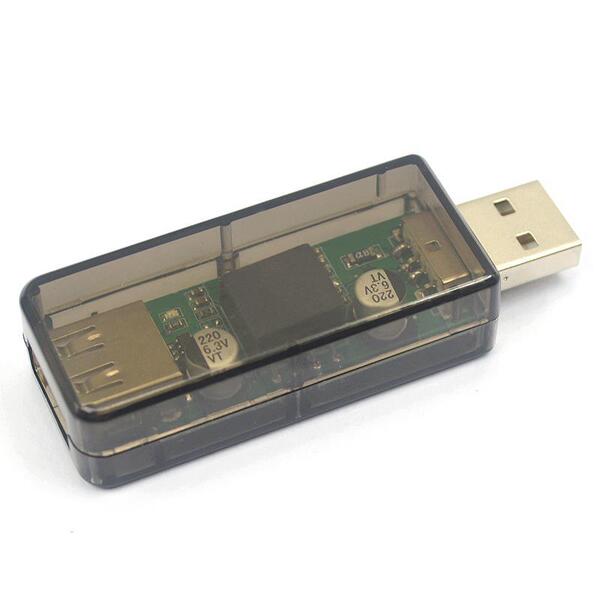

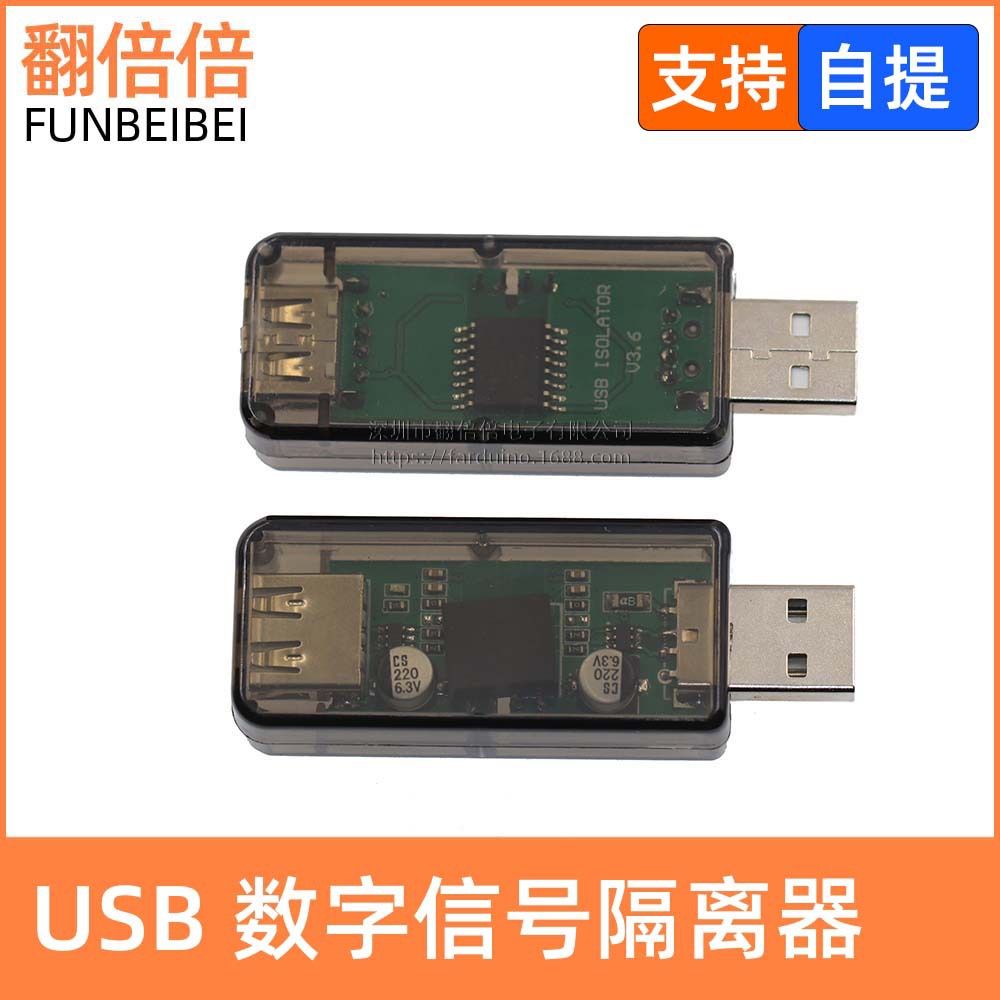

Product: USB isolator/usb to usb isolation digital signal audio power…
BrandLotus
PowerStandard
Specifications And ModelsUSB isolation device*network communication
UnitPCS
Weight0.016 kg
Single-package USB isolation solution.Compatible with USB 2.0, it provides fully isolated 12 Mbps data rate, isolated 2500V voltage, no external power supply, no driver required.The timing, amplitude, direction, speed and regulations of USB signals are all very complex, so it is also a very complex technology to achieve magnetic isolation of USB signals. This model basically represents a high level in the isolation field.
Technical indicators:
■ Compatible with USB2.0

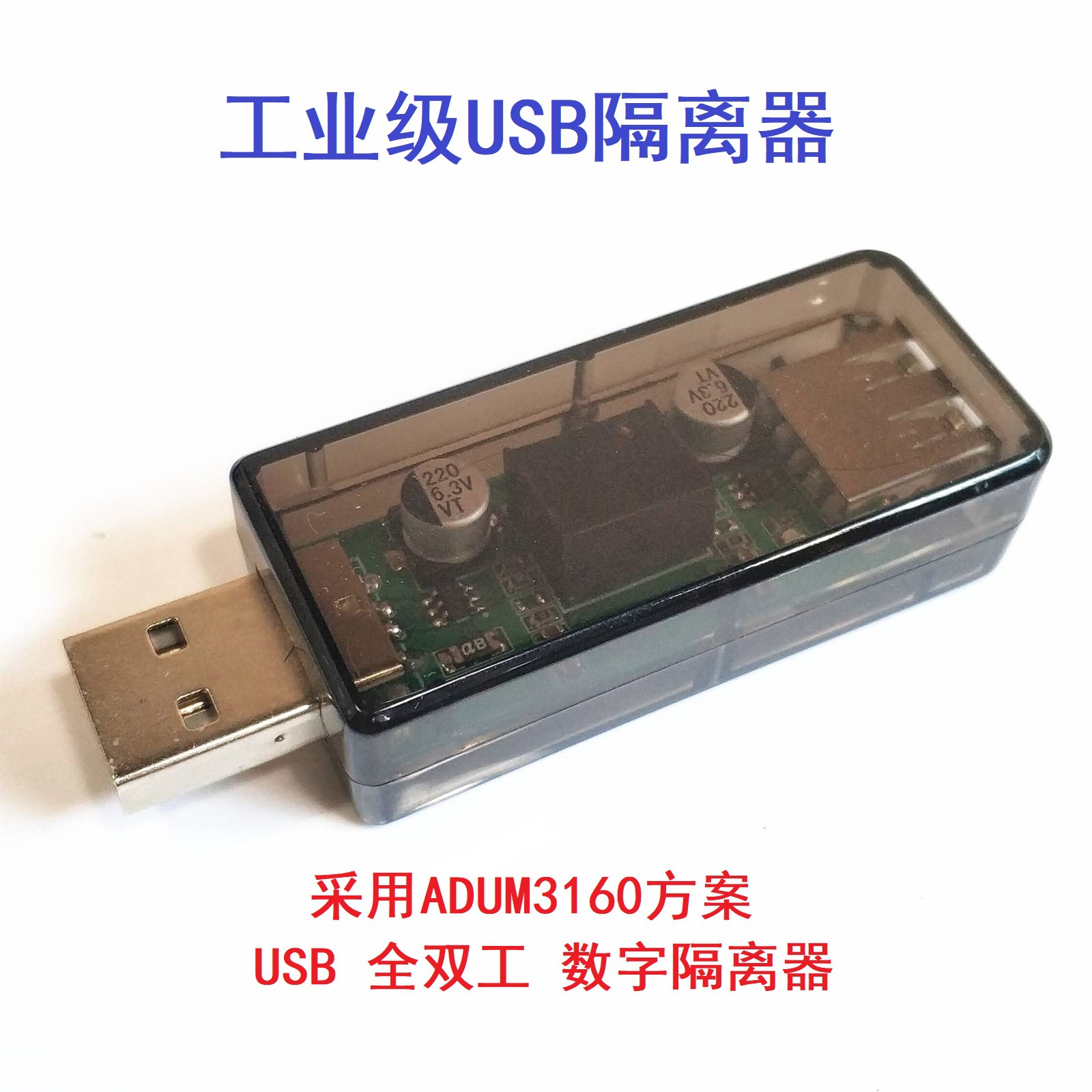

■ Adum3160 isolation voltage: 2500V
■ Power module isolation voltage: 1500V
■ Support USB full -speed 12Mbps Do not support pure high -speed equipment
■ Support USB control transmission, batch transmission, interrupt transmission, synchronization/equal time transmission
■ Power supply power supply: taken from the computer host USB port
■ Driver -free, more convenient to use
■ Use environment: -40 ℃ to 85 ℃
Why is it isolated the USB interface?
The USB interface is already an electronic engineer, one of the most common interfaces of employees' daily work, and life. As the computer industry competition is getting bigger and bigger, the product price is getting lower and lower,
Forced most businesses to computer motherboards The interface protection part can simplify the simplification, and it can save.USB interface not only often with the human body, External contact, and Many times it also does
Power supply.These many current status leading to the USB interfaces of many computers strike in advance. Even the motherboard was damaged.
This product is suitable for the following users:
1. Contains strong electricity, strong interference working environment
Some circuits contain strong electricity, strong interference (such as high -voltage, inverter, motor driver, etc.),
Involving a connection with a computer, it is necessary to isolate to ensure the computer and personal safety.
2. Noise sensitive fields
Everyone knows that computers are a large source of noise.In the field of noise sensitivity, we can communicate with the USB interface through this device.Such as high -precision USB data collection system, HIFI audio system.
3. USB debugging equipment
For example, JTAG/SWD simulator, ISP/ASP/IAP/ICP downloader of various USB interfaces, etc.When you often fail to connect during debugging, and simulation is abnormal, you can use a USB isolationer to try to improve.
4. Various industrial control USB devices
In the industrial environment, USB devices are often crashed, such as USB mouse, keyboard, USB to reconcile ports and other communication devices.The USB isolationer can effectively reduce the risk of crash and damage in these devices in the industrial environment.
Sometimes the USB cable needs to be extended. The USB isolationer can act as a very USB relay, and it can also be isolated from the pressure difference between the upstream and downstream devices.
5. Other common USB peripherals, such as mouse, keyboard, USB sound card, excellent disk, printer, digital camera, USB hub (HUB), USB camera.
Test support equipment:
Full speed equipment:
Youdo, digital camera, card reader, mobile hard disk, U shield, USB hub, AVRJTAG, AVRISP, AVRISPMKII, S-Lab, Jet51, J-Link, FET430UIF, Pickit2, XDS100, LPC-LINK, ICD2, USB to serial port(FT232, CP2102, PL2303, CH341 chip).
Detective equipment that is not supported USB wireless network card, some USB3.0 premium.
Things to note:
This product's board output power supply Jin Shengyang B0505s power 1W, when your USB device works>At 180mA, you can use the USB dual -header to add power.
This product supports full -speed equipment, but does not support pure high -speed equipment (USB2.0).Most USB devices can be used downward.
